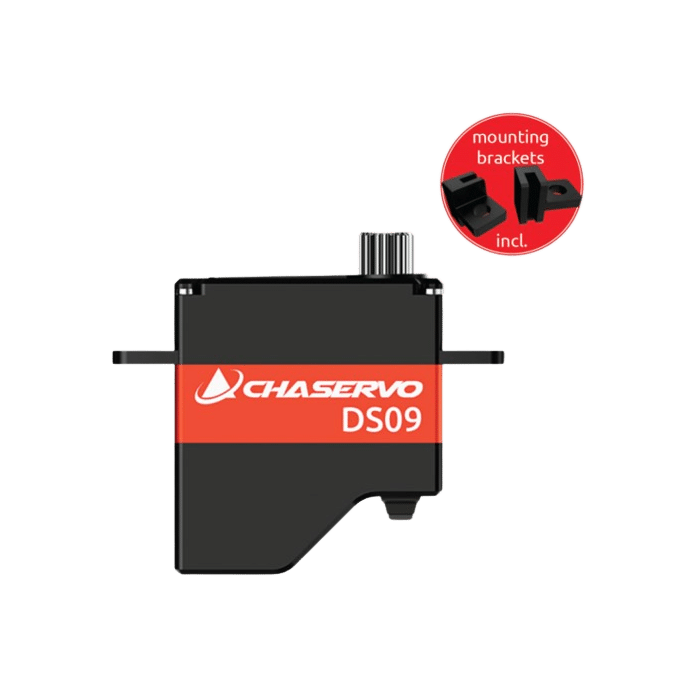

CHASERVO DS09 SERVO HV (6,5KG / 0,10S, @ 8,4V)
€34.90
Auf Nachbestellung verfügbar
Beschreibung
- Dimensions : 23.5 mm x 9 mm x 27.5 mm
- Weight : 12 g
- Rated Voltage : DC 7.4 V
- Voltage Range : DC 3.3 – 9.0 V
- Torque : 5.0 kg.cm @ 6.0V || 6.0 kg.cm @ 7.4V || 6.5 kg.cm @ 8.4V
- Speed : 0.13 sec/60° @ 6.0V || 0.11 sec/60° @ 7.4V || 0.10 sec/60° @ 8.4V
- Max. Current : 0.90 A @ 6.0 V || 1.15 A @ 7.4 V || 1.25 A @ 8.4 V
- Case Material : High Quality Technopolymer and Aluminium
- Gear Set Material : Hardened Steel + Brass
- Ball Bearing : 2x Ball Bearing
- Position Sensor : Potentiometer
- Motor Type : Hollow Cup DC Motor
- Working Frequency : 1520 µs / 20 KHz
- Pulse Range : 900 µs – 2100 µs
- Programmable : Yes
- Gear teeth : 25T
Zusätzliche Informationen
| Gewicht | 0.1 kg |
|---|---|
| Größe | 10 × 5 × 5 cm |
