Slim, fast,
fantastic.
The HV120 series offers a holding force of 25 kg and is available in two versions. It is compact enough to fit into thin spaces and strong enough to play an important role in larger projects.
Specifications
| Servo Data | |
|---|---|

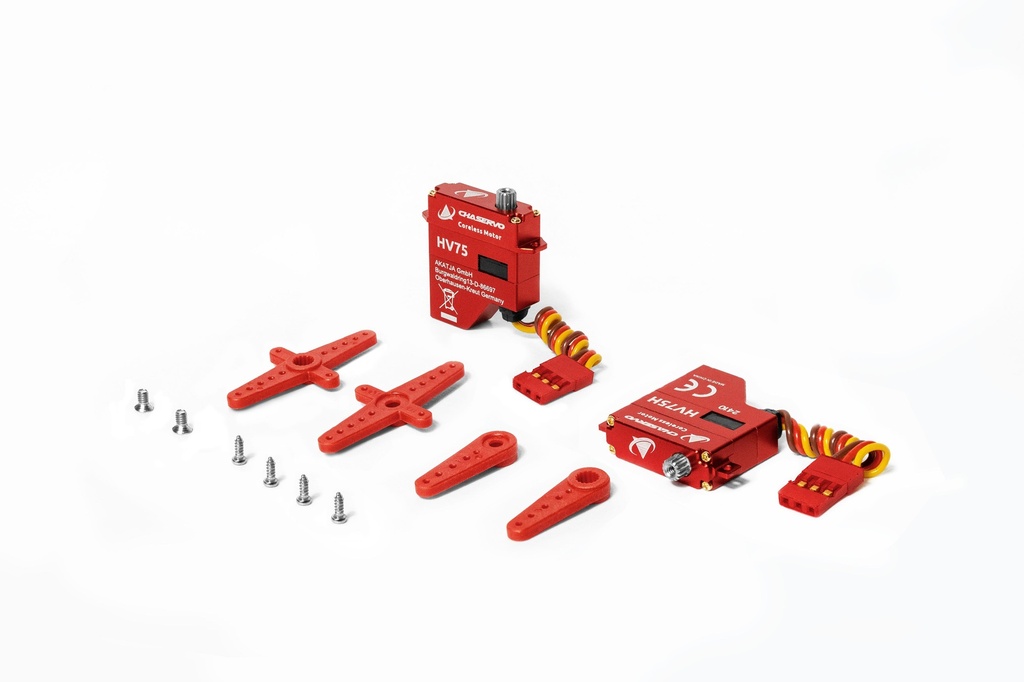

| Version | HV75H or HV75 |
| Dimensions | 23 x 7.5 x 27.5 mm |
| Weight | 0.42 oz (12 g) |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 4.8 – 8.4V |
| Output Shaft Spline | 15T, 4mm |
| Position sensor | Potentiometer |
| Motor | Coreless DC |
| Working Frequency | 1520µs/333Hz |
| Pulse Range | 900µs-2100µs |
| Programmable | Ja |
| Material | |
|---|---|
| Case Material | Aluminium |
| Gear Set Material | Metallgetriebe |
| Holding Torque | |
|---|---|
| Holding Torque @ 6.0V | 4.5 kg·cm |
| Holding Torque @ 7.4V | 6.0 kg·cm |
| Holding Torque @ 8.4V | 6.5 kg·cm |
| Output Torque | |
|---|---|
| Output Torque @ 6.0V | 3.0 kg·cm |
| Output Torque @ 7.4V | 4.0 kg·cm |
| Output Torque @ 8.4V | 4.5 kg·cm |
| No-load Speed | |
|---|---|
| No-load Speed @ 6.0V | 0.13sec/60° @ 6.0 V |
| No-load Speed @ 7.4V | 0.10sec/60° |
| No-load Speed @ 8.4V | 0.09sec/60° |
